LED Lights Done!
Moderators: Redneck_Randy, badmoonrising, lakerunner
Re: LED Lights Done!

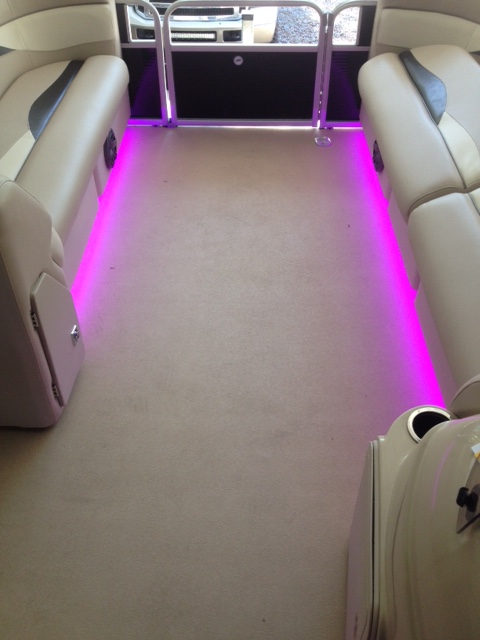

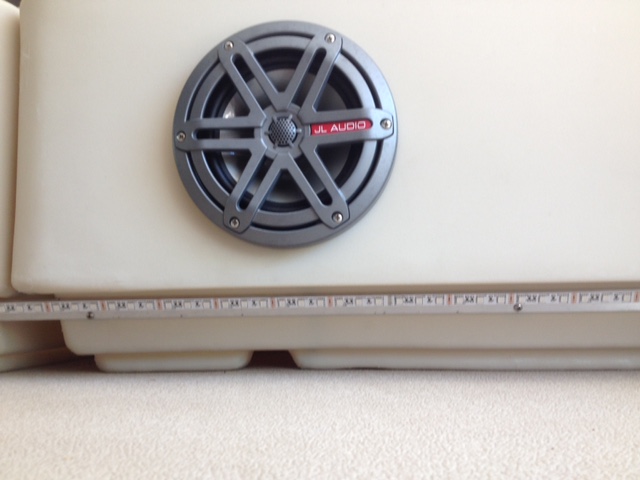

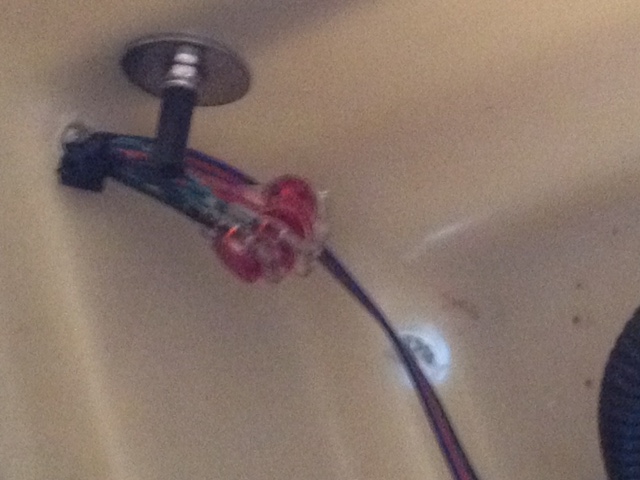

I mounted mine to 1/2" aluminum strips and then mounted the strip to the seat bases. This way if I ever have a problem I can take the bolts out and work on the lights while on the strip.
- Attachments
-
- IMG_3330.JPG (95.79 KiB) Viewed 2353 times
-
- IMG_3316.JPG (102.28 KiB) Viewed 2352 times
-
- IMG_3324.JPG (91.46 KiB) Viewed 2353 times
-
- IMG_3322.JPG (75.16 KiB) Viewed 2352 times
-
- IMG_3320.JPG (72.5 KiB) Viewed 2353 times
[b][i]
2013 Sweetwater 2286 Triple Toon
T.O.T.A.L. Package - 150 Yamaha
[/i][/b]
2013 Sweetwater 2286 Triple Toon
T.O.T.A.L. Package - 150 Yamaha
[/i][/b]
Re: LED Lights Done!
Very nice. They must have changed the bins under the benches because in my Sweetwater this would not have workedCOTTS4x4 wrote:I mounted mine to 1/2" aluminum strips and then mounted the strip to the seat bases. This way if I ever have a problem I can take the bolts out and work on the lights while on the strip.
2015 Sweetwater 2286 | Mercury 150hp
[color=#00BFFF][i][size=85]Nauti Oar[/size][/i][/color]
[color=#00BFFF][i][size=85]Nauti Oar[/size][/i][/color]
Re: LED Lights Done!
I did my lights half way through last season and after the first few weeks was not very happy with the results. I didn't have a good way to secure the lights under the benches, just tried to use adhesive. I took this weekend to completely redo the project.
I used aluminum channels with a diffuser plate. Then I used extreme temp glue to adhere the aluminum to the benches, then I pop riveted them, those suckers aren't falling off. I've got everything wired to the accessory switch on the dash with a dimmer added in-line. I'm pretty happy with the new results.
Aluminum channel
LED strip
Aluminum channel mounted under the bench.
Close-up of the mounted lights.
End result
I used aluminum channels with a diffuser plate. Then I used extreme temp glue to adhere the aluminum to the benches, then I pop riveted them, those suckers aren't falling off. I've got everything wired to the accessory switch on the dash with a dimmer added in-line. I'm pretty happy with the new results.
Aluminum channel LED strip Aluminum channel mounted under the bench. Close-up of the mounted lights. End result
Last edited by Valet37 on Wed Jan 27, 2016 7:20 pm, edited 1 time in total.
2015 Sweetwater 2286 | Mercury 150hp
[color=#00BFFF][i][size=85]Nauti Oar[/size][/i][/color]
[color=#00BFFF][i][size=85]Nauti Oar[/size][/i][/color]
Re: LED Lights Done!
Sorry Valet, but I couldn't stay focused on your pics when I clicked them due to the 4 ad images that were being displayed.
Kim and Steve
2003 Lowe Suncruiser Trinidad 222
2003 Yamaha 90hp 4-stroke
2008 Toyota Tundra 5.7
Spend most of our time on Lake Eufaula
2003 Lowe Suncruiser Trinidad 222
2003 Yamaha 90hp 4-stroke
2008 Toyota Tundra 5.7
Spend most of our time on Lake Eufaula
Re: LED Lights Done!
Grr I use an ad blocker so I didn't see them. Had no idea! I'll upload the images to a different server tonight!
2015 Sweetwater 2286 | Mercury 150hp
[color=#00BFFF][i][size=85]Nauti Oar[/size][/i][/color]
[color=#00BFFF][i][size=85]Nauti Oar[/size][/i][/color]
Re: LED Lights Done!
Oh, keep the pics on that site -- I quite enjoyed those ads.
